Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	208
Available Line Voltage	218
Load kVA	1.6
Frequency	60
Wire	3
Quantity Per Bank	2

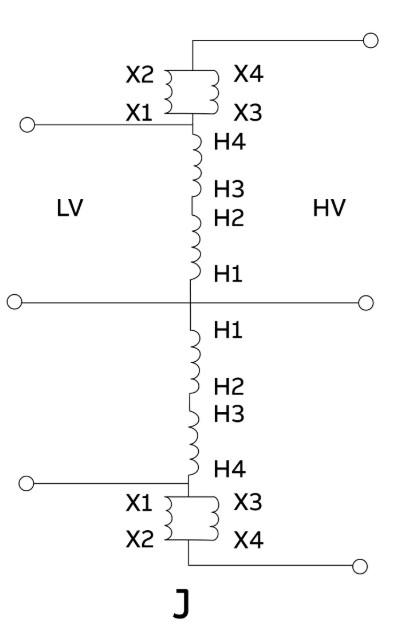

Connection Diagram	J
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	100
Load kVA	0.25
Frequency	60
Wire	3
Quantity Per Bank	1

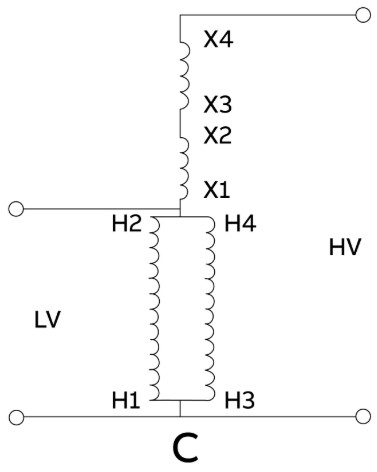

Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	109
Load kVA	0.5
Frequency	60
Wire	3
Quantity Per Bank	1

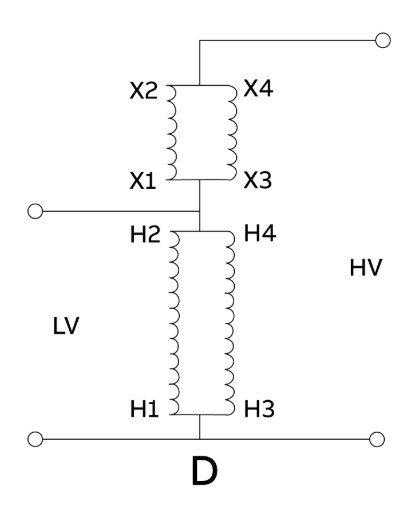

Connection Diagram	D
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	115
Available Line Voltage	127
Load kVA	0.539
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	240
Available Line Voltage	264
Load kVA	0.6
Frequency	60
Wire	3
Quantity Per Bank	1

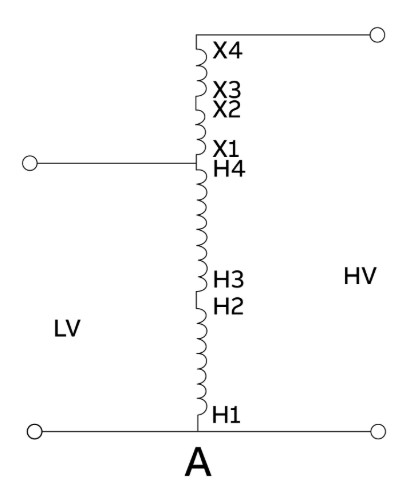

Connection Diagram	A
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	132
Load kVA	0.55
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0110
Description	1C,1.5kVA,120x240-12/24,115C,3R,BB,QB
kVA	1.5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	208
Available Line Voltage	218
Load kVA	31.5
Frequency	60
Wire	3
Quantity Per Bank	2
Connection Diagram	J
Product Weight (lbs.)	25
Enclosure Dimensions (in.)	5.5 (d) x 7.8 (w) x 9.5 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0110
Description	1C,1kVA,120x240-12/24,100C,3R,BB,QB
kVA	1
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	100
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	109
Load kVA	10
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	25
Enclosure Dimensions (in.)	5.5 (d) x 7.8 (w) x 9.5 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0110
Description	1C,1kVA,120x240-12/24,100C,3R,BB,QB
kVA	1
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	100
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	115
Available Line Voltage	127
Load kVA	10.6
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	25
Enclosure Dimensions (in.)	5.5 (d) x 7.8 (w) x 9.5 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	460
Available Line Voltage	418
Load kVA	166
Frequency	60
Wire	3 or 4
Quantity Per Bank	3

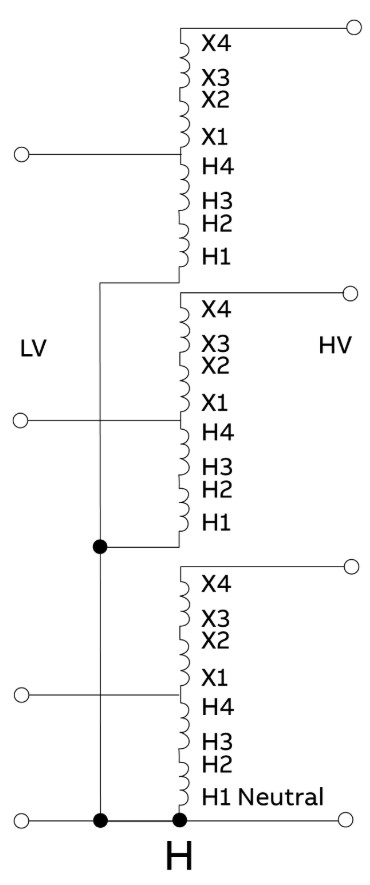

Connection Diagram	H
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	460
Available Line Voltage	438
Load kVA	322
Frequency	60
Wire	3 or 4
Quantity Per Bank	3

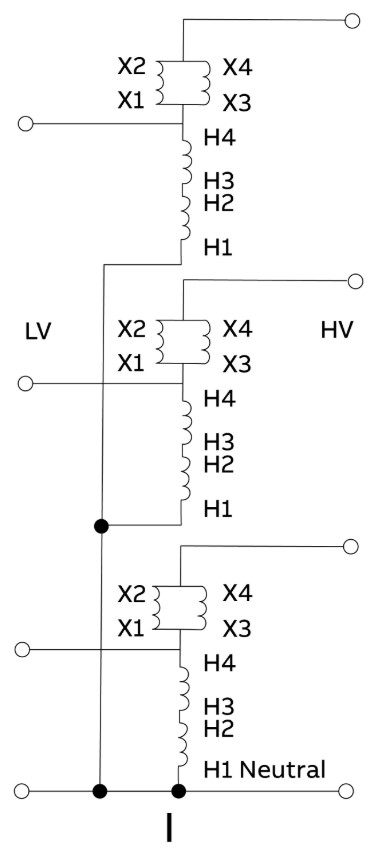

Connection Diagram	I
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	252
Load kVA	105
Frequency	60
Wire	3
Quantity Per Bank	1

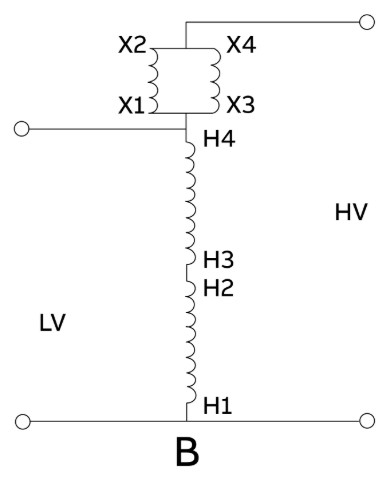

Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	240
Available Line Voltage	200Y/115
Load kVA	87
Frequency	60
Wire	3
Quantity Per Bank	3

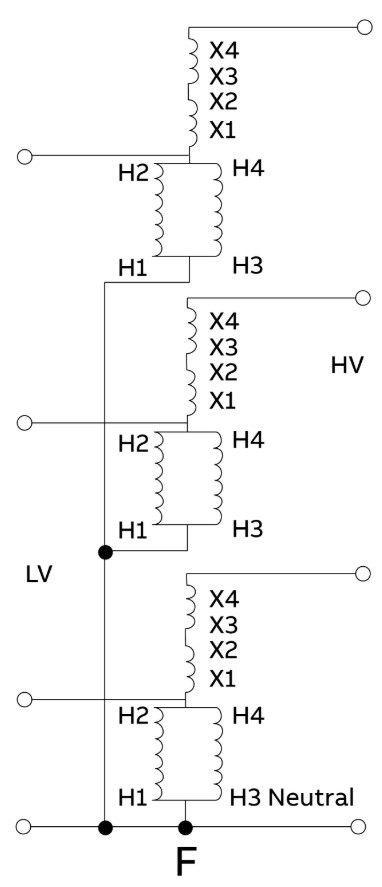

Connection Diagram	F
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	240
Available Line Voltage	218Y/126
Load kVA	173
Frequency	60
Wire	3
Quantity Per Bank	3

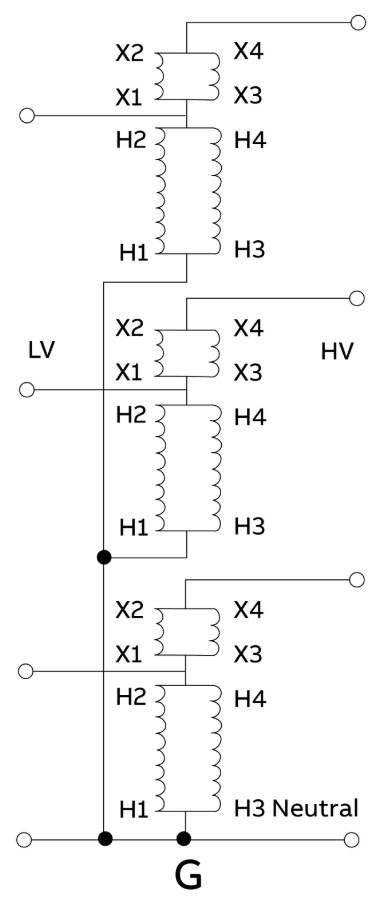

Connection Diagram	G
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	480
Available Line Voltage	436
Load kVA	174
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	H
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	96
Load kVA	24
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	100
Load kVA	25
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	109
Load kVA	50
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	353
Load kVA	52.7
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	127
Load kVA	53
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	264
Load kVA	55
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	132
Load kVA	55
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	138
Load kVA	28.8
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	144
Load kVA	30
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	208
Load kVA	47.8
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	219
Load kVA	95.9
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	105
Load kVA	48
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	242
Load kVA	100.9
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	218
Load kVA	50
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	229
Load kVA	100
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	230
Available Line Voltage	192Y/111
Load kVA	83
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	F
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1037G02
Description	1A,5kVA,120x240-12/24,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	230
Available Line Voltage	208Y/120
Load kVA	167
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	G
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	240
Available Line Voltage	208Y/120
Load kVA	130
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	G
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	240
Available Line Voltage	189Y/109
Load kVA	65
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	F
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	460
Available Line Voltage	406
Load kVA	125
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	H
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	480
Available Line Voltage	424
Load kVA	130
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	H
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	480
Available Line Voltage	450
Load kVA	260
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	I
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	146
Load kVA	22.9
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	203
Load kVA	36
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	216
Load kVA	72
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	101
Load kVA	36
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	152
Load kVA	23.8
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	212
Load kVA	37.5
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	225
Load kVA	75
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	106
Load kVA	38
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	245
Load kVA	77
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	256
Load kVA	80
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	230
Available Line Voltage	261
Load kVA	40.8
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	130
Load kVA	41
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	240
Available Line Voltage	272
Load kVA	42.5
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	136
Load kVA	43
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	115
Available Line Voltage	91
Load kVA	18
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	1 Phase
Output Voltage	120
Available Line Voltage	95
Load kVA	18.8
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	230
Available Line Voltage	181Y/105
Load kVA	62
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	F
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	460
Available Line Voltage	432
Load kVA	130
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	I
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	230
Available Line Voltage	203Y/117
Load kVA	125
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	G
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T21B1040G02
Description	1A,5kVA,120x240-16/32,115C,3R,60Hz,QMS
kVA	5
Primary Voltage	120x240
Secondary Voltage	16/32
Frequency Hz	60
Temperature Rise °C	115
Ambient Temp °C	40
Insulating System Temp °C	180
Winding	Aluminum
UL	Yes
CUL	Yes
Type	QMS
Phase	3 Phase
Output Voltage	240
Available Line Voltage	212Y/122
Load kVA	130
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	G
Product Weight (lbs.)	103
Enclosure Dimensions (in.)	15 (d) x 11 (w) x 12 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications

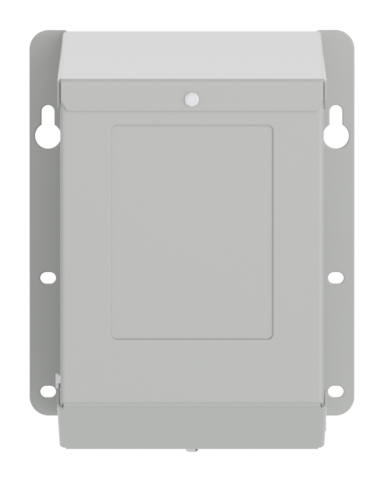

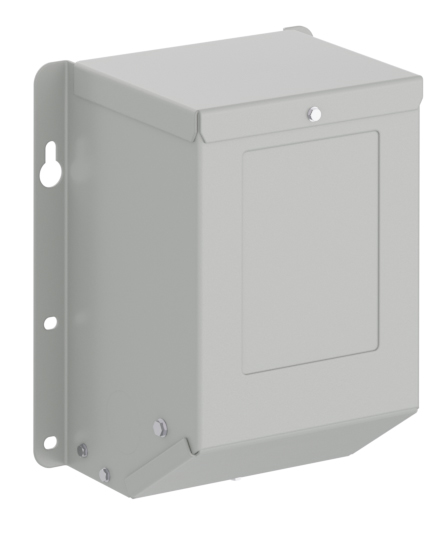

Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	230
Available Line Voltage	219
Load kVA	0.96
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	115
Available Line Voltage	138
Load kVA	0.29
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	208
Available Line Voltage	229
Load kVA	0.8
Frequency	60
Wire	3
Quantity Per Bank	2

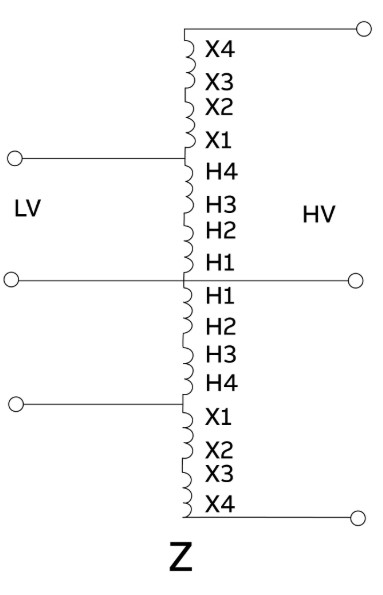

Connection Diagram	Z
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	144
Load kVA	0.3
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	230
Available Line Voltage	242
Load kVA	1
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	240
Available Line Voltage	252
Load kVA	1.1
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	115
Available Line Voltage	96
Load kVA	0.24
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	230
Available Line Voltage	208
Load kVA	0.48
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	A
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	115
Available Line Voltage	105
Load kVA	0.48
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	208
Available Line Voltage	229
Load kVA	0.8
Frequency	60
Wire	3 or 4
Quantity Per Bank	2
Connection Diagram	Z
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	460
Available Line Voltage	418
Load kVA	1.66
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	H
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	460
Available Line Voltage	438
Load kVA	3.32
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	I
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	240
Available Line Voltage	200Y/115
Load kVA	0.87
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	F
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	240
Available Line Voltage	218Y/126
Load kVA	1.7
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	G
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	480
Available Line Voltage	436
Load kVA	1.74
Frequency	60
Wire	3 or 4
Quantity Per Bank	3
Connection Diagram	H
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	208
Available Line Voltage	218
Load kVA	1.6
Frequency	60
Wire	3 or 4
Quantity Per Bank	2
Connection Diagram	J
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	230
Available Line Voltage	192Y/111
Load kVA	0.83
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	F
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0102
Description	1C,0.05kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.05
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	230
Available Line Voltage	208Y/120
Load kVA	1.7
Frequency	60
Wire	3
Quantity Per Bank	3
Connection Diagram	G
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	100
Load kVA	0.38
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	115
Available Line Voltage	138
Load kVA	0.44
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	144
Load kVA	0.45
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	230
Available Line Voltage	219
Load kVA	1.5
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	115
Available Line Voltage	96
Load kVA	0.36
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	C
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	208
Available Line Voltage	218
Load kVA	2.3
Frequency	60
Wire	3
Quantity Per Bank	2
Connection Diagram	J
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	3 Phase
Output Voltage	208
Available Line Voltage	229
Load kVA	1.2
Frequency	60
Wire	3
Quantity Per Bank	2
Connection Diagram	Z
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	120
Available Line Voltage	109
Load kVA	0.75
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	D
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20

Specifications
Catalog Number	9T51B0103
Description	1C,0.075kVA,120x240-12/24,55C,3R,60Hz,QB
kVA	0.075
Primary Voltage	120x240
Secondary Voltage	12/24
Frequency Hz	60
Temperature Rise °C	55
Ambient Temp °C	40
Insulating System Temp °C	105
Winding	Copper
UL	Yes
CUL	Yes
Type	QB
Phase	1 Phase
Output Voltage	230
Available Line Voltage	242
Load kVA	1.6
Frequency	60
Wire	3
Quantity Per Bank	1
Connection Diagram	B
Product Weight (lbs.)	6
Enclosure Dimensions (in.)	3.2 (d) x 5.1 (w) x 6.2 (h)
Enclosure	NEMA 3R Non-Ventilated
Sound Level	NEMA ST-20
